Installed Cache Memory Storage Capacity: 8 GB

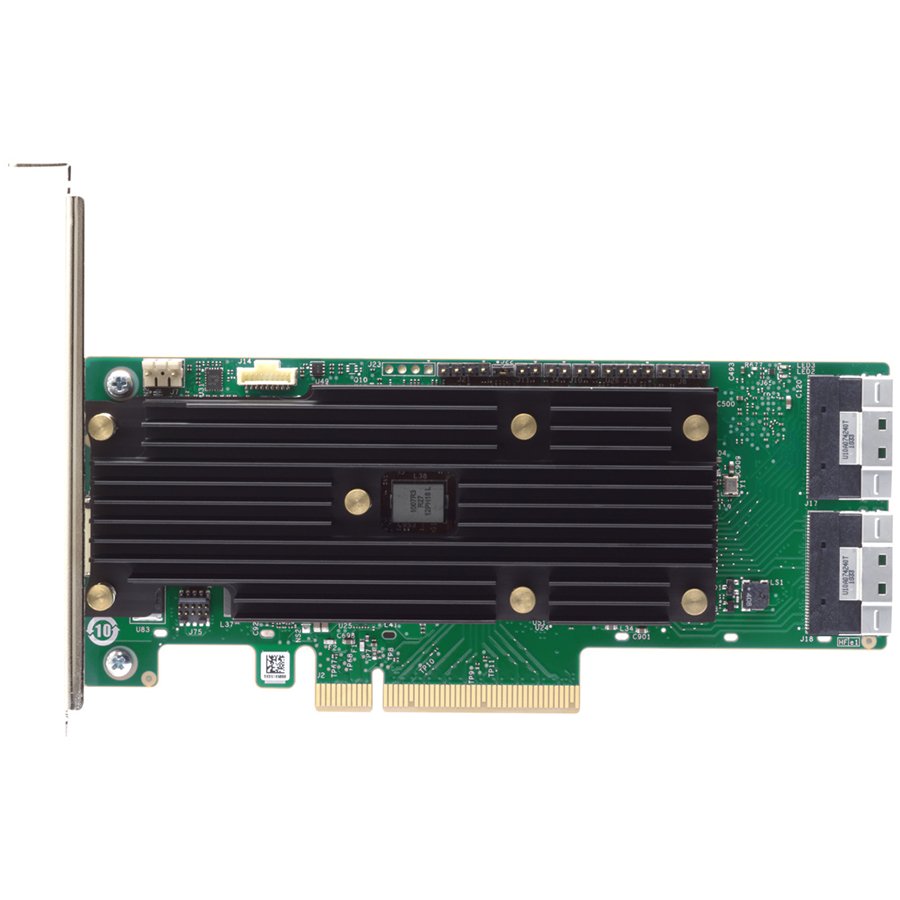

Controller Name: MegaRAID 9560-16i

Controller Form Factor: Plug-in Card

Requires Expansion Slot Standard: PCI Express 4.0 x8

Interface: SAS

Requires Expansion Slot Convention: Low-profile Card

Provides Data Channel: SAS/SATA/NVMe (PCIe)

Data Transfer Rate: 12 Gbps

Number of Input-Output Channels: 16

Supports Number of Devices: 240

Supports RAID Level: JBOD , Level 0 , Level 1 , Level 10 , Level 5 , Level 50 , Level 6 , Level 60

SAS: 16 (SFF-8654 (SlimSAS))

Requires Operating System: FreeBSD , Linux , Microsoft Windows , SuSE Linux , Debian , Ubuntu , CentOS , Citrix XenServer

Input Voltage: DC 12 V

Maximum Operating Ambient Temperature: 55 °C

Minimum Operating Ambient Temperature: 0 °C

Included Accessories: Quick Start Guide

Depth (mm): 155.65 mm

Height (mm): 68.9 mm

Warranty Products Returnable: Yes

Warranty Term (month): 36 month(s)

Warranty validation Criteria: Serial Number

Pack Weight Brutto (kg): 0.4 kg

Pack Weight Netto (kg): 0.4 kg

Pieces in pack: 1

Box Weight Brutto (kg): 0.4 kg

Retail Packaging Net Weight Carton: 0.4 kg

Retail Packaging Net Weight Plastic: 0.4 kg

Packs in Box: 1

Package Type: Box
